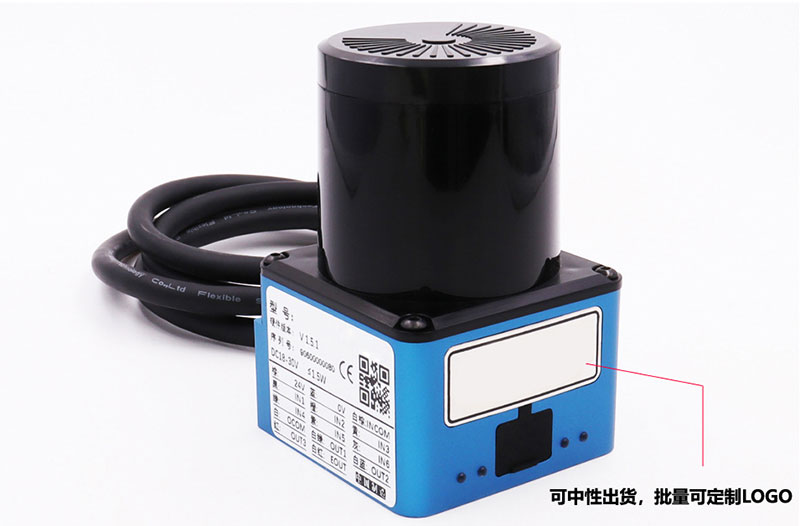

AGV kokkobe adaf soolisaanam kee bood sad radar ixxo Giti ekraaro leyser qarramtu Dudda le riig roobot bood sad radar ixxo

acassaale:

Qarransis qaynat: Optikaal Qarransis

ittallakleh: 270° leeser hangisso | Raadaar ixxoh

cusiyyi cogda: TOF pulsih caddoh teknolooji

baxxo cuso: 0.25-5 mitir (90% obti)

gacsi uddur:0-50MS

gommodmali cayli satqo: 18 (V)

Xaloot asta: 4 NPN xalootitte

gaba kalti qaynat: maykoro-USB

culmah kalalih caddo: IP65

Diifu raceenah qaynat: Laser mooyat deddar 905nm

taamah niqna: 30 (°C)

rammale ixxima le packages: 1 mafdaga

Assabalta arooca: Gommod mali kee gommod mali

cuduuduk taturta iroh yawqih dubuk tan xayyos xayyoosaanam kee waytaamak: hinna

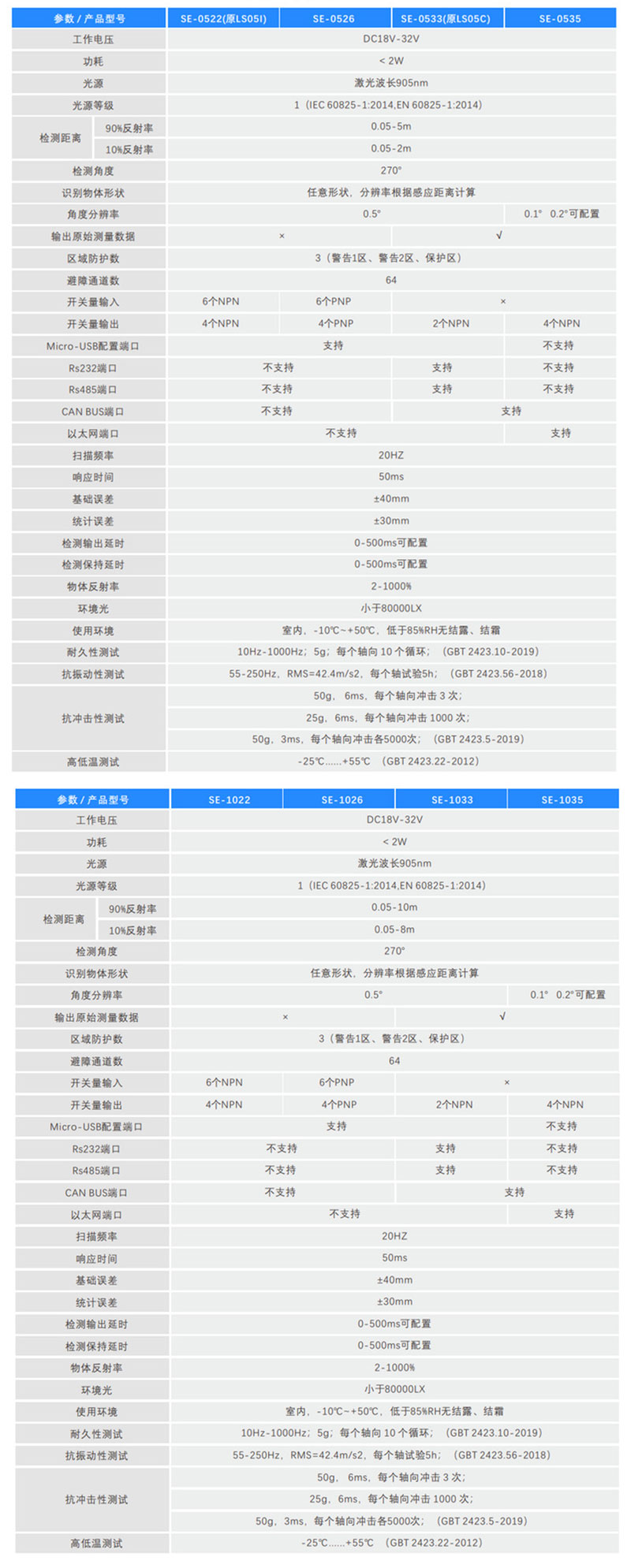

Baxsaluk: SE0522 ( CNS-LS05I, 5 mitiritte, 6 NPN satqo, 4 NPN awqenta), SE0526 ( 5 mitir, 6 PNP satqo, 4 PNP awqentitte), SE0533 ( CNS-LS05C, 5 mitir, 2 NP5N awqentitte), SE0533 SE1035 (10 mitir, 4 NPN awqentitte), SE1026 (10 mitir, 6 PNP satqo, 4 PNP awqentitte), SE1022 (10 mitir, 6 NPN satqo), 4 NPN awqentitte), SE1033 (10 mitir, 2 NPN awqentitte)

Abbinotteh tan murtitte: AGV | RGV birtaali, roobot gexoh xoqoyso yabbixeenimi

adaf kalalih gititte: 64 gititte

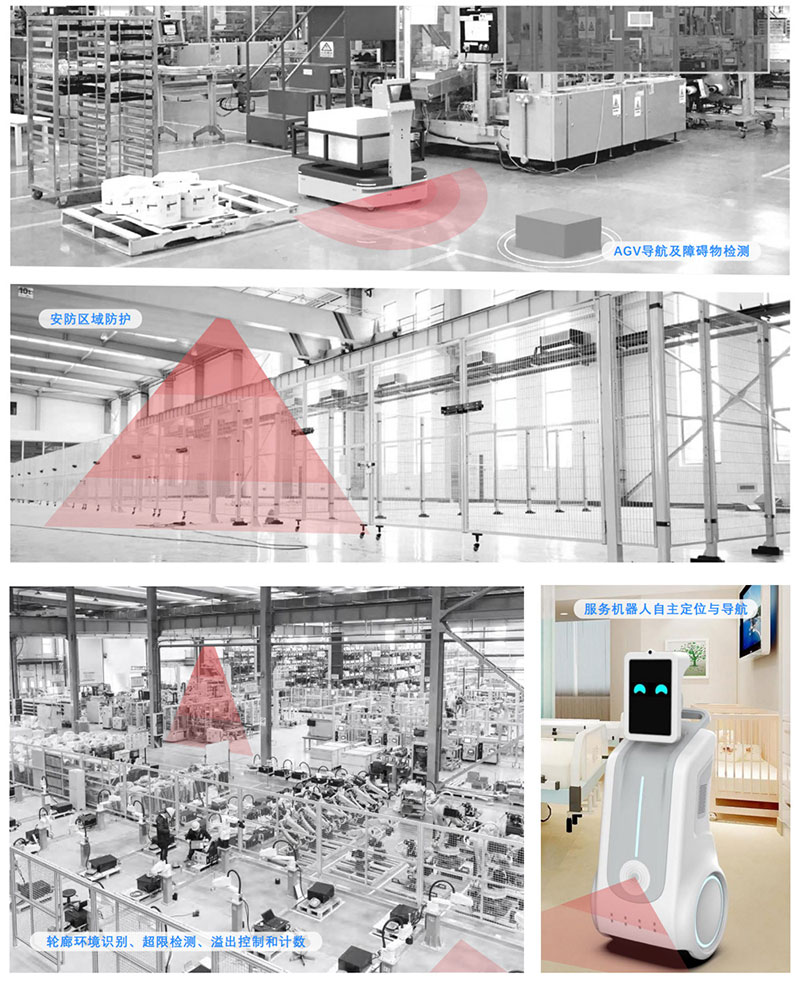

tuxxiq: AGV gexo kee adaf waaso, robot gitih ekraaro, kontur geyto, fayya waadoh maabitina, bood sadih maabitina, culmah maabitina, perimeter maabitina, w.w tanim.

Qagaaqagi acassaale: 20HZ

270°TOF leeser hangisso

laser ixxoh hangisso haadiyyah uddurut taamitta ( TOF qeedaalissoh radmooma). kaxxam fayyale celsis saaqatih gubat, toh laser tayyaaqe inkinnale waktih addat. laser cuumi abaabta wadir toh duyyet tangoorowe wak. ixxoh qarramsiiseh geera abaabta diifu, toh taturteh uddur baxsi rubtuma kee oggol fanat yantifiqqen baxxo cisaabissuh laser qarramsiisak duyye fan, kee namma-addah ixxoh dariifa xayyowteh dariifâ kontur muucih geyto. kalali aracih caddo softi weer xikneh addat xissinte. Inki qaynatih object set area addat gactek, sensor output port celsiisak signal yeyyeeqeeh, host computer signal geyak fooca fanah lowsis kee gexsit abak geytima. ixxoh caddo 270°, ixxoh raadiyees 10m, digri gonah fidga 0.5°, ixxoh qagaaqagitak: 20Hz, 64 korsih gititte xayyoysaanam, Ethernet marsoh xisne, ≤2W ultra-low caylih lowsis.

Ceelo:

Mango angaaraw cogdaadi qokola

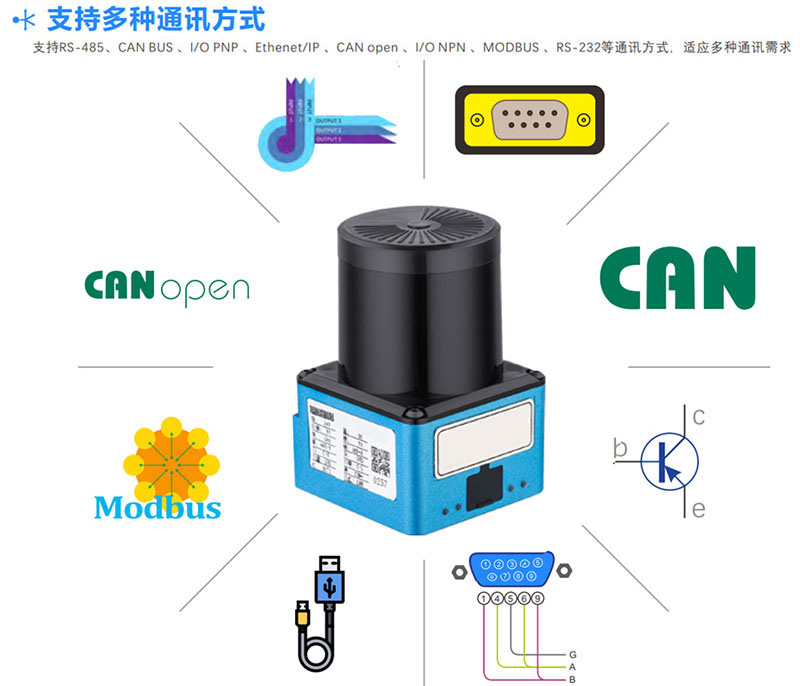

Qokol RS-485, BAAS, I/O PNP, Ethenet/IP, fakkiimam duudah, I/ONPN, MODBAS, RS-232 kee gersi angaaraw cogdaadi baxaabaxsa le angaarawih fayxitteh massoosaanama

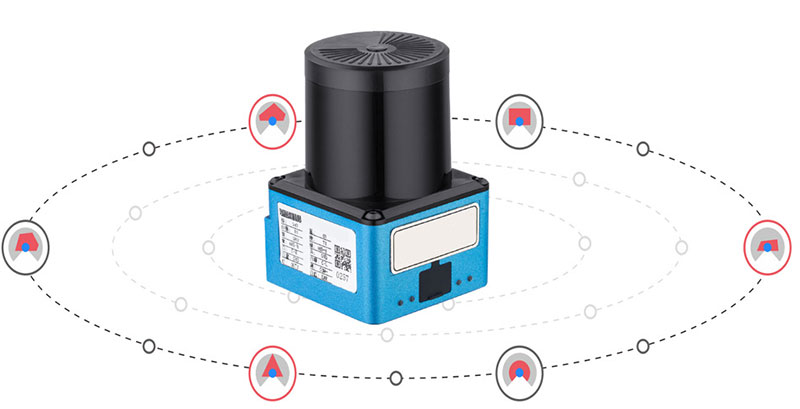

takke gitah meexo qoklah

Hinson softiweerik rakisso, 64 fan meexo xayyoysaanam ( umman gita 3 currik tan fokkaaqoh caddo xayyoosa)

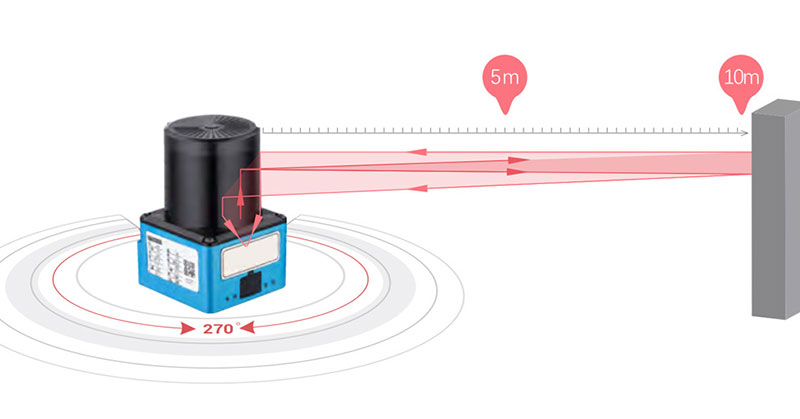

270° ixxoh caddo

ixxoh raadiyoosu: 5m/10m

Fayya le ixxoh gona: 270°, rammale gonah fidga: 0.1°, fayyale baxsi baxxo: 10m (90% abaabta)
