PIT kullumti dabboh baxsih silaacitte RFID mereyya tubboh baxsi kullumti kiryaati

Working voltage: 12-36V

Working current: 1A

Power requirements: Linear regulated power supply

Circuit protection: with polarity protection and overvoltage protection (maximum 60V)

Working frequency: 134.2KHZ

Maximum antenna size: 200*100cm (can be customized)

Supported label types: HDX, FDX-B

Communication interface: RS232, RS485

Working humidity: 10%-90% RH (no condensation)

Working temperature: -25℃~70℃

Protection level: IP65

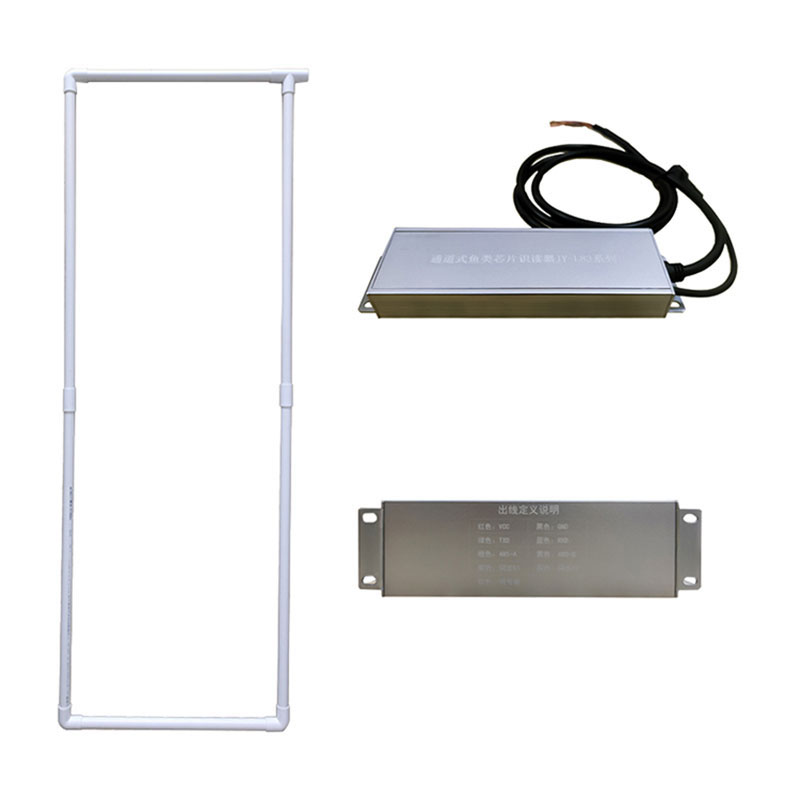

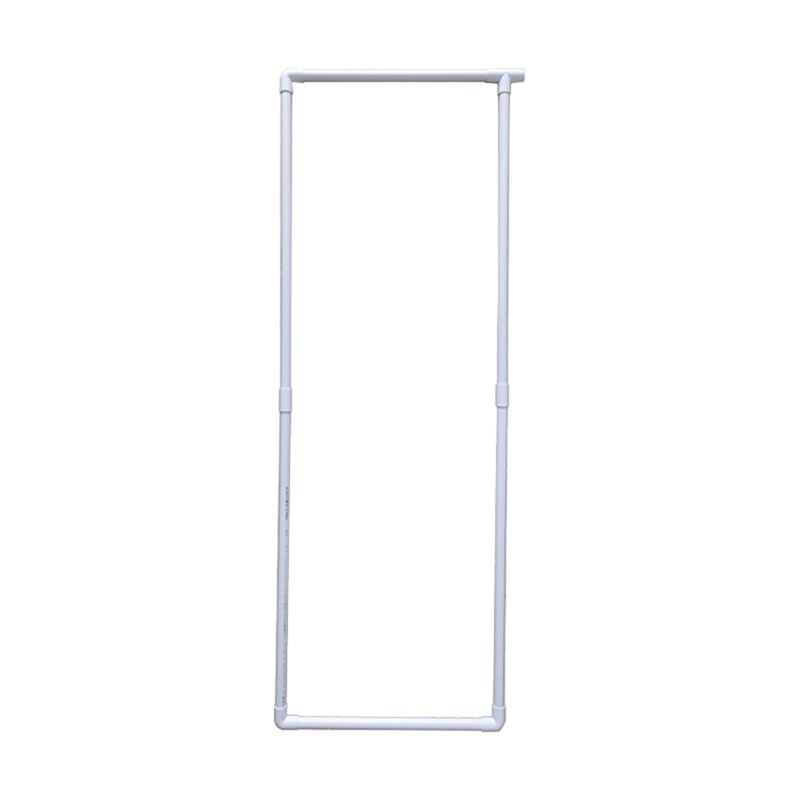

Antenna appearance: PVC-6 tube

Installation method: PVC pipe clamp

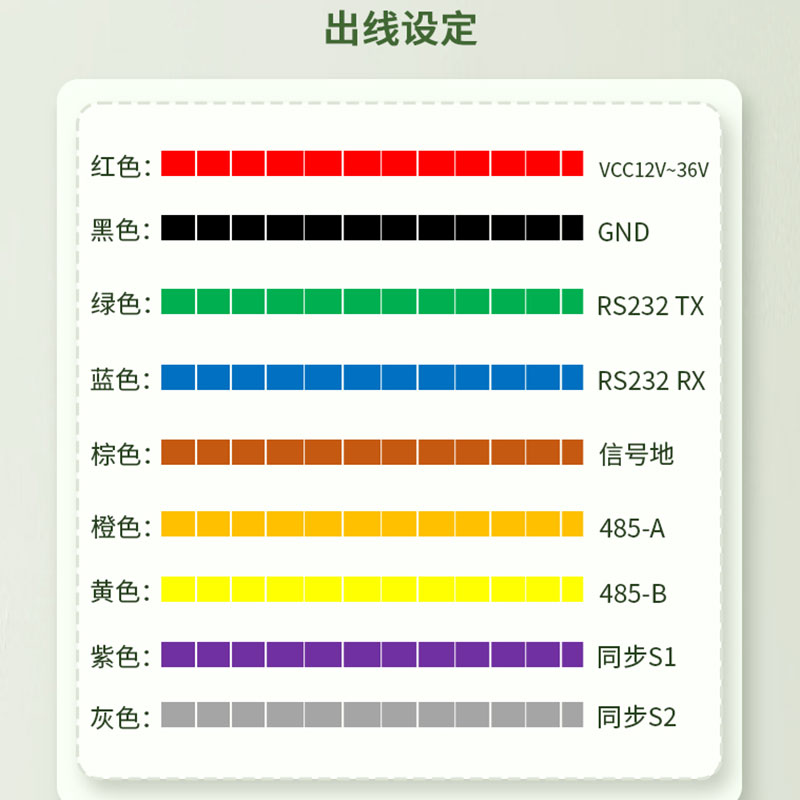

signal indication

Red LED: power indicator light;

Green LED: reading reminder light;

After the reader is connected to the power supply, the red LED is always on, and the reader enters the automatic tuning state and tunes its own parameters according to the working environment. When the reader detects the presence of an RFID tag, the green LED lights up after successful decoding.

The factory default master-slave mode, if you need to read data, the host needs to send a command to read.

Inki jahaazat yantifiqen wak, 120Ω terminal resistor fanat yan angaaraw S1 astah firta kee angaaraw S2 astah firta fanat yan angaaraw diggoysaanam kee namma angaaraw firtih fanat yan baxsi kapaasitansi kee angaaraw firtih dariifal angaaraw diggoysaanam faxximta. Caalat culma; mango yahaadal inki uddurut yantifiqen wak, oson ittat axawah gacaanam faxxinta, akkewaytek oson gitah taamite waanam takkeh. Sittat axawah tan angaaraw cogdah CAN bus angaaraw, sinkronis S1 asta sinkron S1 asta, kee sinkron S2 asta sinkron S2 asta. ittalluk abit ( CAN-basa) retteemah firti topoloojih oggol le. namma marsoh baasat kibbimtam faxximta 120Ω marsoh anaakar; nodes ixxima 2 daga tekkek, fanti nodes 120Ω terminal resistors luk kibbimtam mafaxximta. luddi angaarawih, ken deddar 3 ruddik matatra.

Kullum kusaaqih addat, RFID raadiyoh frequency baxxaqsih teknoloojih (PIT tagging method deqsita) inkih tan kullumti baxxaqsa kee lowsis akah aban innah cato abta. too bisle uddurut, toh adabi taqabi mali kullumtal baxsimte. Baadal taysaabbi qagaaqagih chip baxsi xer qumri leeh manol yan. kullumti xagarah addat, kullumti manoh aydaadu kusaaqisnuh bicale. gita anteena aracat gactam kullumti tatur, weeqayti footimaami hinnay kullumti aylahsiyyih ludditte. RFID raadiyoh frequency chip anteenah addal yan magnetic field fanah gexa wak, inductor elle geytima eletriik cayla geytimaah, tohuk lakal isi baxsale koox geytima. anteena baadal taysabbi qagaaqagih laqlaquk tawqeh tan asta geytam kee baadal taysaabbi qagaaqagih culmah kiryaati fan tatrussa. nummah uddur oyti tasjiil kee obsiyyi misso kusaaqiseenit xer taamak cattaah, oyti gexsiisoonuh mango wakti keenih tatrusan. Tohih taagah, kullumti migaq kee kullumti gexoh karawwad lowsiisih caddol, raadiyoh frequency chip tagging, lowsis kee lowsis cogda kinnim tamixxige. ta cogda lih, nanu edde radnam abnisso tû mabul, wakti dabbo, gaddi ixxima, mano/rabi caddo, w.w tanim kullumti, kee inki uddur xayyoysam rakiibo kullumti tatur xalootih kusaq, kullumti caalat kattat, dabboh uddur madqa, gaddi ixximah kusaq, kee sigmah qagitak xisiyya. , misso kalalih ekraaroora kusaaqisnuh tuxxiqle oytih rakiibo xayyoosaanama.
