RFID abinah kiryaati- kutbeh moojuul 2.45G abinal kiryaati- kutbeh moojuul abinal PCie foocal fooci moojuul rfid moojuul

ISM dokonih addat taamit 2.45GHz, oyti tabaatabsi currik yan. TTL RS-232 xayyos foocal kee mango gititte IO lowsis foocal, moojuul fantaaxaw lowsis mangom bicta. Mojuul PA kee signal conditioning circuit lih angaaraw le, culma/awqenti cayli softiweerit lowsiisam duudah, kee lowsis baxxo lowsiisam duudah. Mojuul lowsis gubat yan teknoloojih qokol abak, module taamah cayli iroh lowsis port fanah culsaanam kee culsaanam duudumtah; API dadalih cibitte, assabalta miracsentittee kee ceeloh mudentitte xayyowteh sissik agle kee assabalta luddittel.

RF acassaale

  Taamitiyyi qagaaqagi: ISM qagaaqagi dokon 2.4-2.48GHz

  Xaloot cayli: fayyale xalu +18dBm, xissimteh 32db caylih lowsiisih, maaqatta -2db, softi weer lowsiisih

  Cuso hargaanam: -96dBm

Baxsi astah maqarih ascossi (RSSI): -50dBm- -80 dBm, gitah +1dB

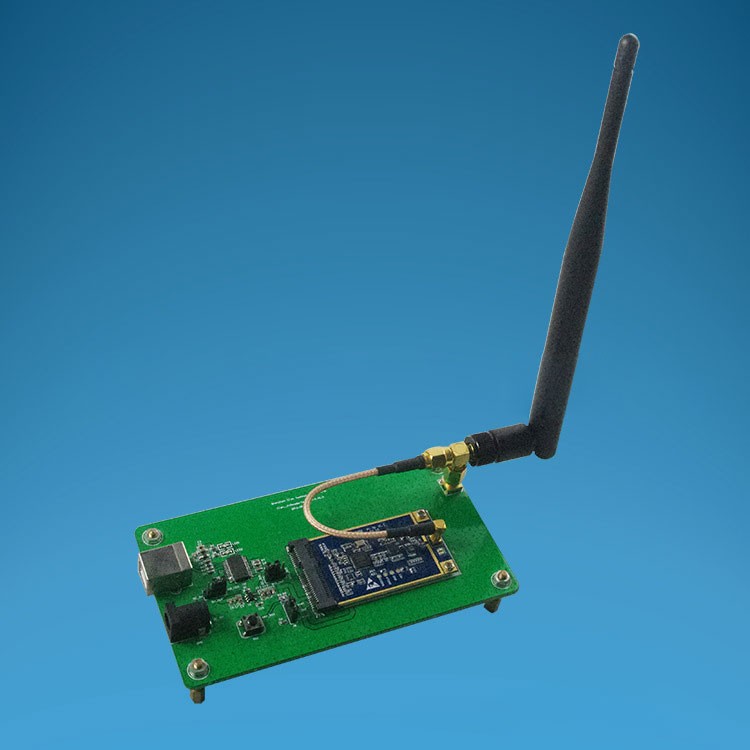

  anteenah foocal: borxi MMXCK-KE garayyo, iroh anteenah raqte

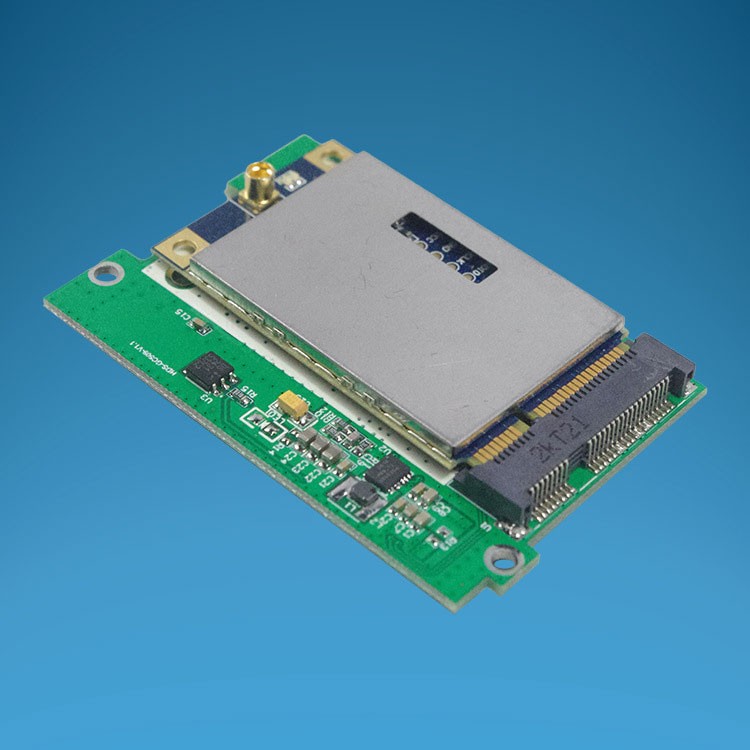

angaaraw caalat: MINI-PCIE gatbarah madab angaaraw

  angaaraw foocal: TTL caddo RS232 ittallakleh marso

  I/O foocal: qokol 2 gita TTL caddo, IO marsoh awqentih awqentih asta ( massos faxxiima)

  Assabalta softi weer pilaatformi: API dadalih cibitte xayyos, assabalta miracsentittee kee sirritte ceelallo

Oyti tatrussoo kee baxsi maylatak

Qokol bedih portokool: canka portokool, oyti tabaatabsih portokool maqmiil fayxiik ugutak massoosaanam duudumtah

Qokol baxsih taamah caalat: ittalluk abit nek abinah baxsi

  Kawsi baxsih baxxo: 0~150 mitir ( elle rakittam baxsih awqentih cayla kee iroh anteena, gibbatu fakut yan aracal)

  mamaxxagah tulsika: 120 baxsitte/nammeyhayto ( dubuk mamaxxagah ixxima)

  bood sadih gexsit: 300 baxsi inki uddur kawsa

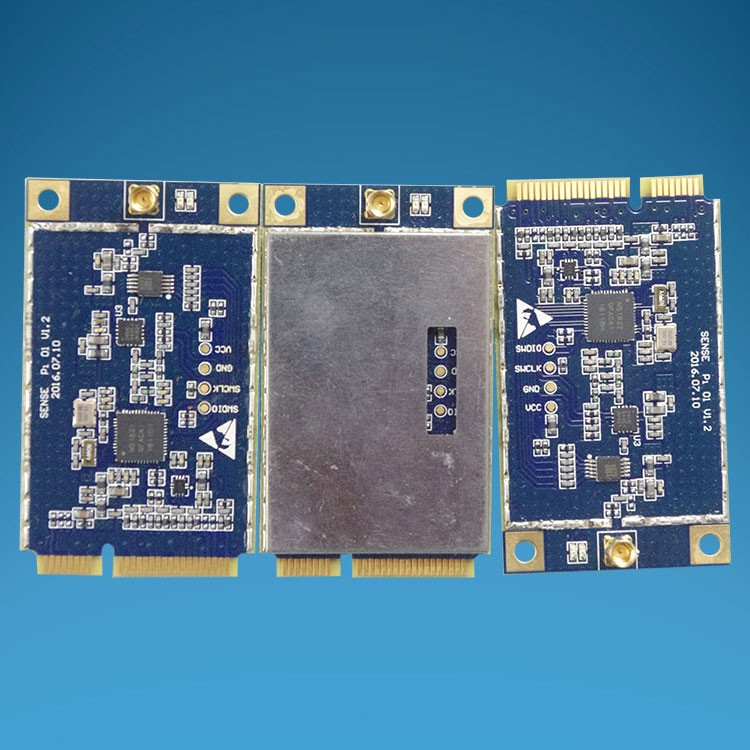

makaanikaal kee eletriik uwwaytitte

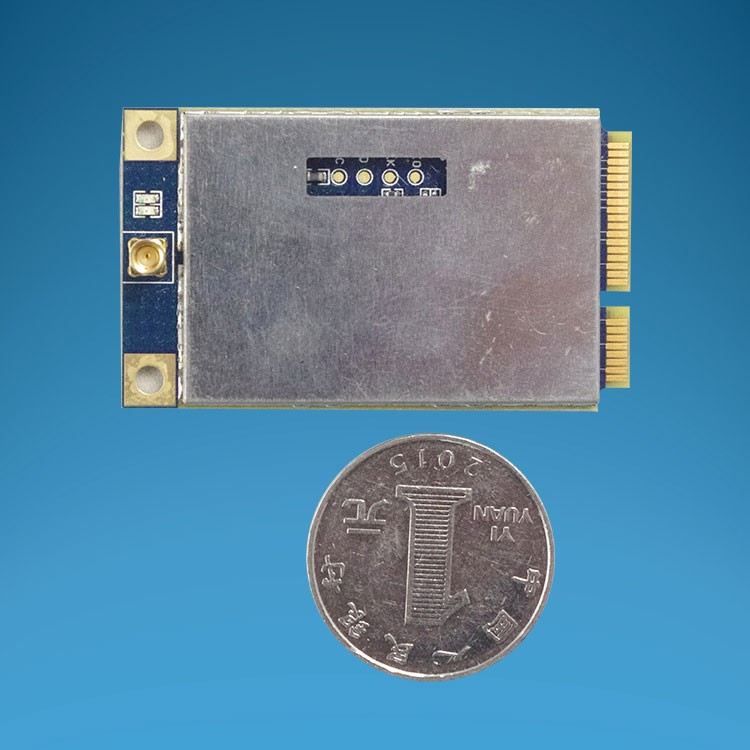

  acassaale: 30mm × 50.96mm

  Qilsa: 20g

  Elmô mekla: DC 3.3V

  Elmô xoqoyso: 300mW

  taamah niqna: -40°C~+80°C

  kobxissoh niqna:-60°C~+80°C

  taamah uynan: 5% ~ 95% ( ufuy ruubo mali)

bedu 2,24,39,41,52

VCC

cayli asta, satqo DC 3.3V

bedi 4,9,15,18,21,26,27,

29,34,35,37,40,43,50

GND

cayli asta, cayli ardi

bedi 38

UART_RXD

UART RXD, ittallakle marsoh oytih culma, TTL caddo

bedi 36

UART_TXD

UART TXD, ittallakle marsoh oytih tabaatabsa, TTL caddo

28

UART_RTS

tiqobbaroh IO foocal, UART_RTS ittallakle marsoh essero oyta ruuboonuh

bedi 30

UART_CTS

tiqobbaroh IO foocal, UART_CTS ittallakle marso oyta ruubaanam idnisa

bedi 51

IOT_DFX

DFX loopback asta, TX/RX loopback UART fayya iyya wak, iroh giitaanam-adah anaakar faxxiima.

bedi 22

IOT_RST

Mojuul qagitak qemmisiyyi asta, abinah addah, iroh giitaanam faxximta

bedi 3

IO_FAK

Mojuul addat tan afkanih asta, iroh gexsitit duqaysimak mojuul afkanal yanim keeh, kee iroh 10K pull-up resistor faxximta.

bedi 46

IO_AFAL_INNAH

Mojuul addat tan catoh asta, iroh yan gexsit elle faxximta innal, PIN3 (IOT_ON) lih saanih angaaraw le, kee iroh yan 500Ω pull-down resistor faxximta.

gersi bedu

NC

tuxxiq mali
