UHF RFID gatbarah kiryaati moojuul edde ossimem seramiik anteena RFID inkih inki maashinih addat

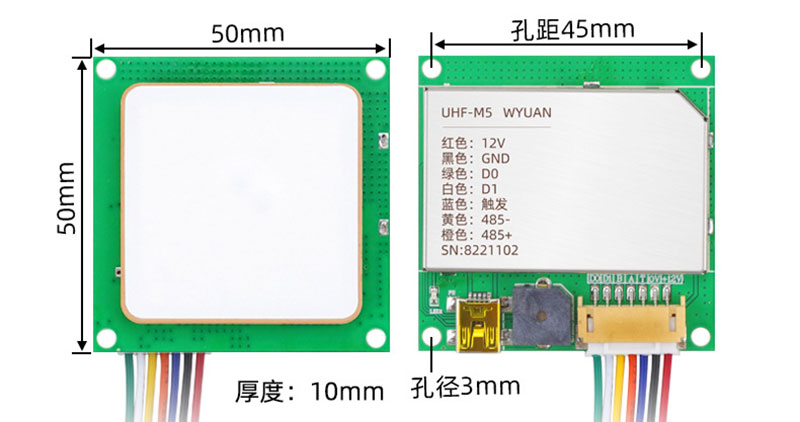

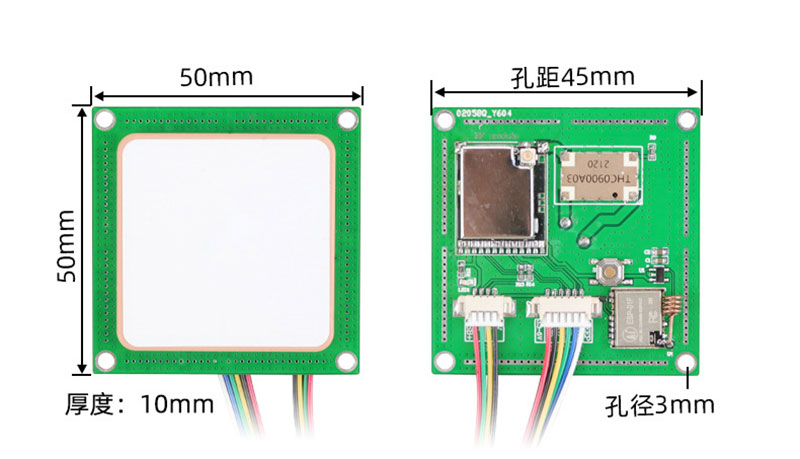

Murtissoh caddo: 50*50*10mm
gommodmali cayli taamitam: DC 12V
Taamitiyyi qagaaqagi: 865~868MHz, 902~928MHz
taamah sittin gey: ISO18000-6C
taamitiyyi caalat: abini caalat, abini caalat, uguugus caalat
Qagaaqagi kaqitih caalat: fidin-ispektiram qagaaqagi kaqitto (FHSS) hinnay maytani qagaaqagi, softiweerit massoowele
angaaraw foocal: USB, WG26/34, RS485
Kardi kiryaatih cayla: 0~30dBm massoowele

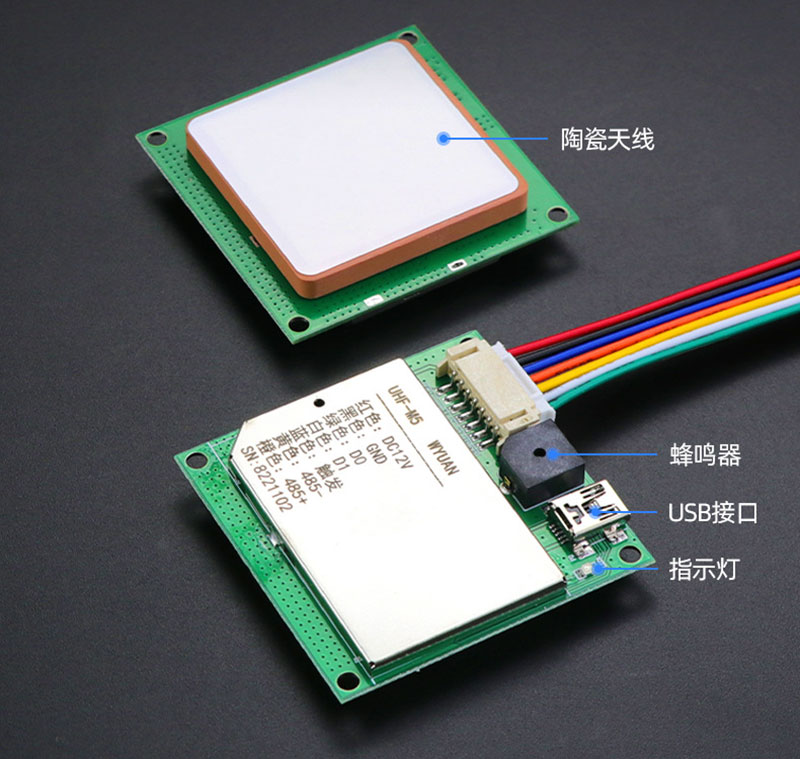

Anteenâ Geyto: Maroytal Polarayzed Seraamik Anteena
Kardi kiryaatih baxxo: 0-2 mitir
taamah fayitte: xongoloo kee ascossi ifitte
cayli adoobi: fayyale cayli 4W muxxi hinna
taamah niqna: -20°C~+80°C

Active mode

The device has been waiting for the card to be read, and when the tag enters the card reading range, it will immediately identify and obtain data.

Passive mode

The device is in the intranet, and a local computer or single-chip microcomputer is arranged. When the device receives the query command from the host computer, it reads the tags within the range and uploads them to the local computer.

Trigger mode

The device is in the standby state. When the tag passes the external trigger, the device is awakened by high/low level 10 to query the tag, and the data can be uploaded to the local computer.

UHF RFID card reader module embedded ceramic antenna RFID all-in-one machine
