UHF RFID inxastarih qaxmeqe gatbarah kiryaati mango-tuxxiq raadiyok qagaaqagi gommodmali baxsih kiryaati

Baxsaluk

Kooran acassaale

Qagaaqagu:860-960mhz

portokool: ISO 18000-6C

Qagaaqagi caddo:865Mhz 868Mhz; 902 928 MHz (akkek massos)

FM caalat: FHSS akkek maytani qagaaqagu, softiweerit massoosen

RF awqenta:20-30dBm massoowele; 50Ω quuka

CPU lowsiisih firqawa: mogoy (STM32F107)

angaaraw foocal: RS232, RS485; gersi bicseenit doortam duddah TCP/IP akkek waayirles angaaraw

portokool qaynat: modbaas RTU (doorit);

angaaraw caddo: caddo 9600～115200bps,

Amolladi-hadaf satqo/awqenta (GPIO): diifi baxsimeh 1 satqo, 1 awqenta;

Nummiinale sostiweer maysaasa: qeedaalisso maysaasa cogda

Assabalta softi weer foocal: API dadalih cibitte kee assabalta maysabaka xayyos

taamah caalat mayballah caalat: LED ascossi, xongolo

gommodmali caylih satqo: 9-24V fan massoosaanama

cayli: 22W (RF mawqah cayli 26dBm)

dariifâ acassaale

uynan: 5% ilaa 95%, xamca sinni

kalali caddo: IEC IP67

taamah niqna: -20°~+70°

kobxiseenah niqna: -40°+85°

Dagar acassaale

Gide: 95(L)*95(W)*40(H)mm

Xakbise cibta: maroh tan lee waasa M10 pin sokkeeti

alfime qilsa: 450g

goli takrimeh cogda: birti goli, kiryaati gona massoosaanam duudumtah

Maysarraqa Maysarraqa

◆Dubuk daagisiyyih maysarraqa yakriye marah geytimtam kee raqteh tan maysarraqooqi edde tantifiqem madudda. sidiica amri bedu qoklah 0×03, 0×06, kee 0×10.

UHF acassaale

RF core chip: PR9200 baadal taysabbi qagaaqagih chip

Qagaaqagi caddo: 902-928MHz akkek 865-868MHz ( massoowele)

Qagaaqagi moojuleeshin cogda: fidin spectrum qagaaqagi moojuleeshin (FHSS) hinnay maytani qagaaqagi, softiweerit gulgulumtam duuddah

xissimteh tan anteena: 3dbi maroytah tan anteena

Silayti angaarawih portokool: EPCbaad UHF footima 1 jen 2/lSO 18000-6C

Xaloot cayla: 18-26dBm+1dBm

Xaloot caylih massos: 1dBm maaqatta ( softi weer daffeyna)

Kawsi baxxo: baxxo lowsiisimtam duudumtah 30cm-200cm fanat ( baxsa le xayyos kee anteenah geyto)

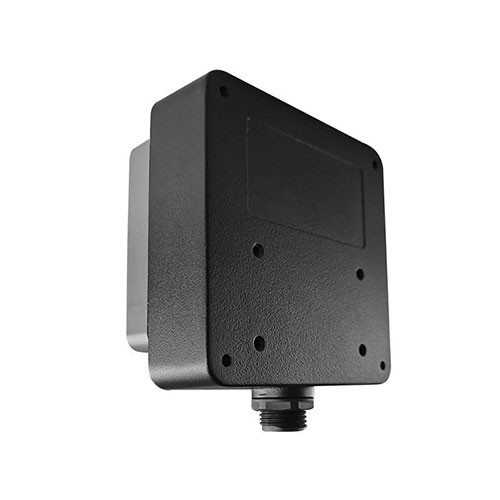

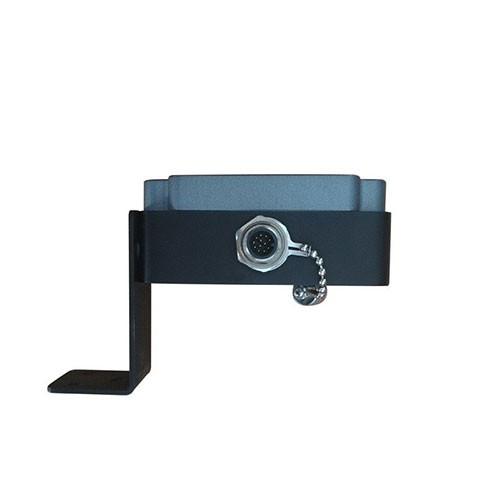

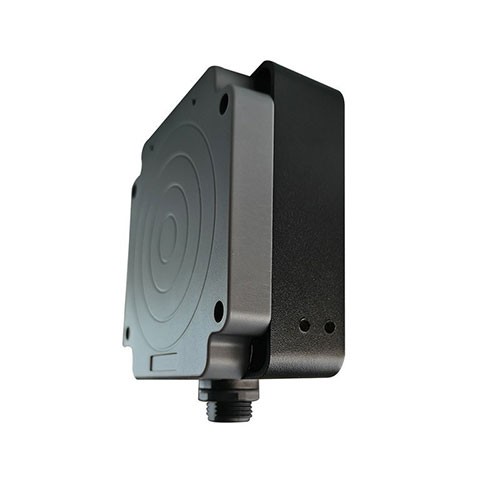

<img src="/takar/muuci/20230314/1678787581719923.jpg" ammunta="UHF RFID inxastarih qaxmeqe gatbarah kiryaati mango-tuxxiq raadiyok qagaaqagitak gommodmaliyyoh baxsih kiryaati qagitak" alt="UHF RFID inxastarih qaxmeqe gatbarah kiryaati mango-

weelo kee angaaraw

ABS+ aluminium alloy shell, buxah addal hinnay irol meqe silaytu, qaane kee robti dariifah addal geytimta.

angaaraw foocal, xongoloo kee ascossi ifih akat yaakumik ciggil dagal yan qarwalil ciggiltah tan weeloola le:

A. RS232 angaaraw qaynat: 1 RS232 port (DB9 jack: RxD culma, TxD ruuba, signal ground) PC serial port luk sittat axawah tan, angaaraw qaynat 10m fanah yan.

B. Buzzer: Xissimteh tan buzzer, kulli wak yakriye num elektirooniik tag yakriye wak, xongolo bicsa.

C. ascossih ifu: qasa ascossih ifu umman way urra cayli urteek lakal; kulli uddur yakriye num gommodmaliyyoh asta yakriye wak, kuclin ascossih ifu urra.

D. cayli foocal: +9~12V D haadiyyi culma sokkeeti ( toh yaanam, qisii kee diti).

E, I/O angaarawih angaaraw

1 RS485 marso (485+ ( toh yaanam qas burraacin), 485- ( toh yaanam burtukaan) baxsa le asta 1, xer baxxoh astah tabaatabsa

◆2 I/O awqenti marsoosa: awqenti fayya kee salac le caddoh asta, walqinaan kee kuclin akootat duqaysimak.

◆GND (axcih burraacinaan);

◆1 uguugus asta culmah marso: FIN1- (migaq siyaan), FIN1+ (migaq burraacinaan), addah tan caddoh uguugus.

Fiiruku: Akriye num trigger mode taamat yan waqdi, lead lowsis caddot axawah gactek, yakriye num automatically kardi ixxima lowsis gubat gactam fan.
