UHF RFID kawsa mango gititte xer baxxoh kurruuma gatbarah kawsa assakat le gommodmali baxsih kawsa

Leynâ weeloola kee lafale matteebanni baxsitte

* Qokol EU 840~868MHz, US 902~928MHz taamah qagaaqagi ( hinnay massos)

qoklah EPC baad UHF footima 1 jen2/ISO18000-6C portokool RFID baxsitte.

* qokol laqnah hangisso RFID baxsitte, uynan hangisso RFID baxsittee kee gersi dagoo hangisso RFID baxsitte.

*FHSS akkek maytani qagaaqagih tabaatabsa.

*RF awqenti cayli 33dBm fanah.

* Kawsiyyi caddo 0~20M.

* Qokol abni, abni kee uguugus caaloota.

*Qokol amobaxxaaqa hinnay agleh EPC, TID kee DUQAYSIMAH gino.

* IAP sostiweer maysaasa qokla.

* dago caylih adoobi, dubuk +12 DC caylih meklat duqaysimak.

USB qokol, RS232, RS485, weegandi, RJ45 ( TCP/IP, UDP) foocal, bulutuuz, wifi kee poE dooriti.

*Qokol 4 anteenah SMA marsoosa.

* dadalah DEMO kee SDK xayyos.

Xangabittel rakitak dadal qoklah, Andiroyid, C++, C#, JAVA, w.w. taniimi.

◇Dimension:24.5*20.5*3.5CM

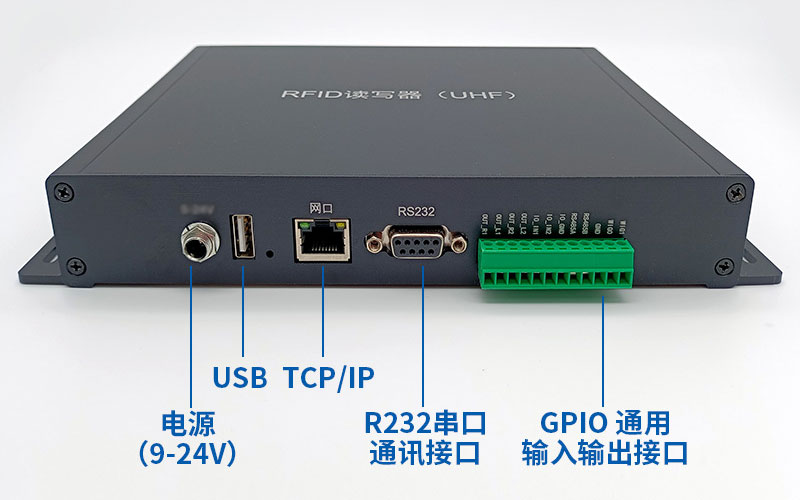

◇Interfaces: Standard-WG26/34, RS232/485, USB, TCP/IP

◇Optional:Built-in Wi-Fi, Bluetooth wireless communication interface

◇CPU: Built-in 4 core Cortex-A9, 1.6GHz Android 4.4

◇Memory: 1GB SRAM and 8GB ROM built-in

◇RFID CHIP: Impinj R2000 RFID solution and bi-amplifier synthesis circuit

◇Protocol:EPC C1G2, ISO18000-6B/C, GB/T29768-2013(optional)

◇Frequency: US - 902MHz~928MHz, EU - 865MHz~868MHz

◇Baud rate:115200bps

◇RSSI support:Perceivable signal strength

◇Work Principle:FHSS/FF

◇Work Mode: Timing/Active/Trigger

◇Power supply:DC +9V～24V

◇Output Power:0~33 dbm (Adjustable)

◇Reading Distance:0~20M (Depending on antenna)

◇Reading Speed:>700 times/s

◇Antenna port:8 ports (Female interface)

◇Shell material:Aluminum

◇Protection grade:IP55

◇Operating Temperature:-20℃~+70℃

◇Operating Humidity:<95%RH (+25°C) Non-condensing
