Qunxa giddakiino, dago caylih adoobi | mango angaaraw cogdaadi | sidiica taamah cogdaadi
IS018000-6C portokool | nammeyhayto dadal qokola | Suuqunti matteebanni miracsenta
Kawsiyyaa kee kutbeh muujul kurruuma
anteenat xoqoysimaanam faxxinta. fayyale anteenah geyto, tayse gatbara kiryaatih xalootu. toh qokolta WG26/34, RS232/485, kee TCP/IP angaarawa.

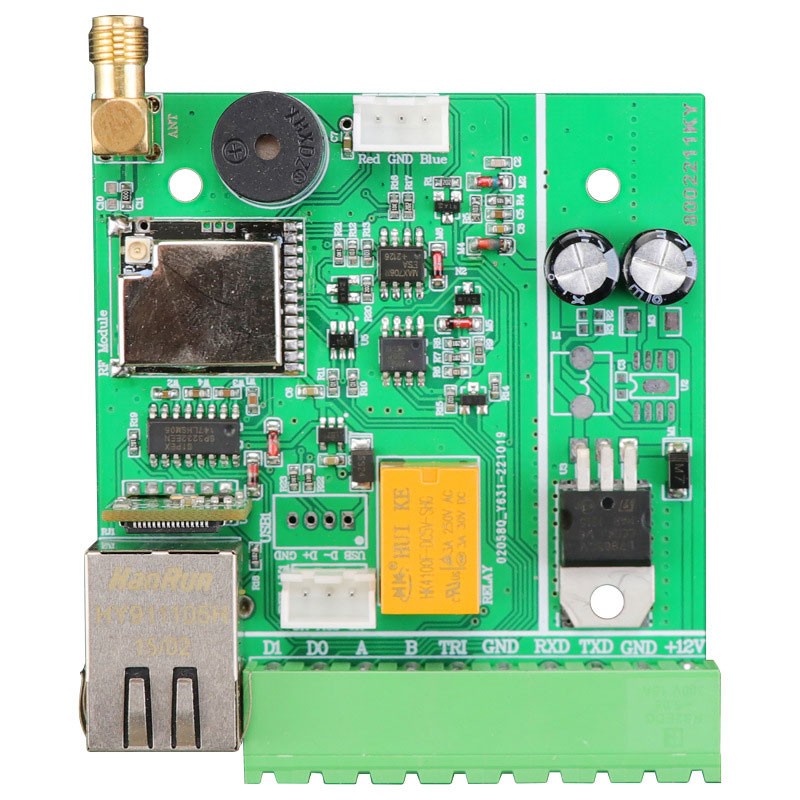

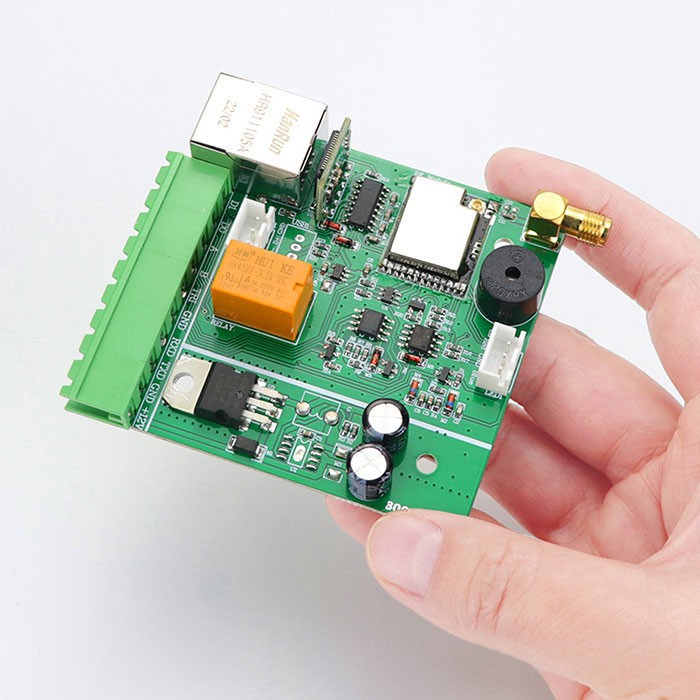

Qunxa giddakiino kee addah tan caylih adoobi
ittat axawah taniih sahlin kibne, baxaabaxsa le assabaltah sinaariyoh bicta

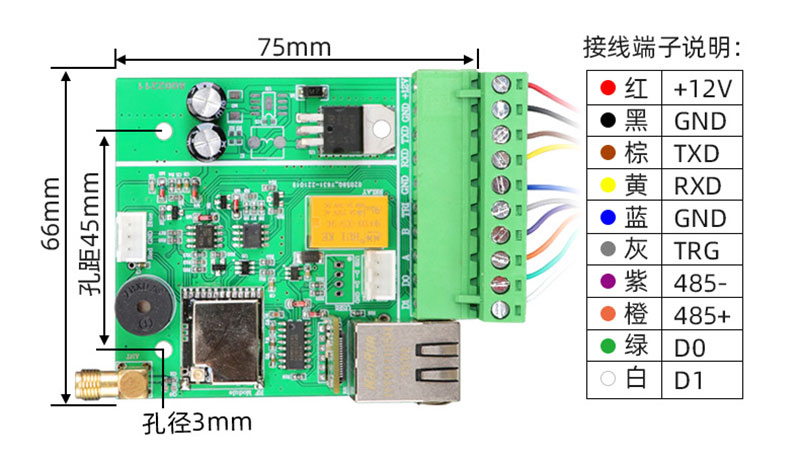

Murti giddakiino: 75*66*16mm
gommodmali cayli taamitam: DC 12V
Taamitiyyi qagaaqagi: 865~868MHz, 902~928MHz
taamah sittin gey: ISO18000-6C
taamitiyyi caalat: abini caalat, abini caalat, uguugus caalat
Qagaaqagi kaqitih caalat: fidin-ispektiram qagaaqagi kaqitto (FHSS) hinnay maytani qagaaqagi, softiweerit massoowele
angaaraw foocal: WG26/34, RS232/485, TCP/IP
Kardi kiryaatih cayla: 0~30dBm massoowele
taamah fayitte: xongolo
cayli adoobi: fayyale cayli 4W muxxi hinna
taamah niqna: -20°C~+80°C
Active mode
The device has been waiting for the card to be read, and when the tag enters the card reading range, it will immediately identify and obtain data.
Passive mode
The device is in the intranet, and a local computer or single-chip microcomputer is arranged. When the device receives the query command from the host computer, it reads the tags within the range and uploads them to the local computer.
Trigger mode
The device is in the standby state. When the tag passes the external trigger, the device is awakened by high/low level 10 to query the tag, and the data can be uploaded to the local computer.
