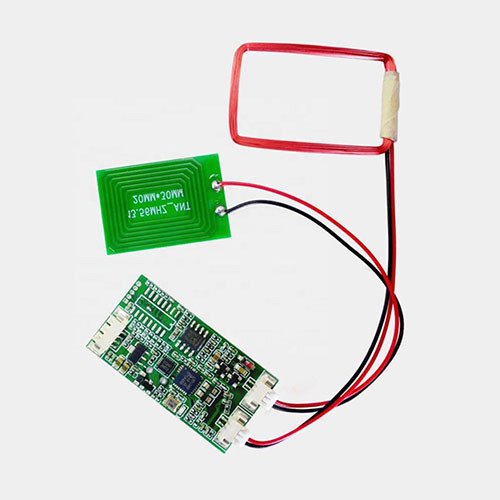

ISO14443A IC angaaraw sinni gatbarah kiryaati mamaxxaga gatbarah kiryaati moojuul namma qagaaqagitak qaxmeqe gatbarah kiryaati ittallakleh marsoosa luk

ISO14443A IC angaaraw sinni gatbarah kiryaati mamaxxaga gatbarah kiryaati moojuul namma qagaaqagitak qaxmeqe gatbarah kiryaati ittallakleh marsoosa luk

Taamitiyyi qagaaqagi: 13.56MHz+125KHz
gommodmali cayli taamitam: DC5V akkek DC3.3V

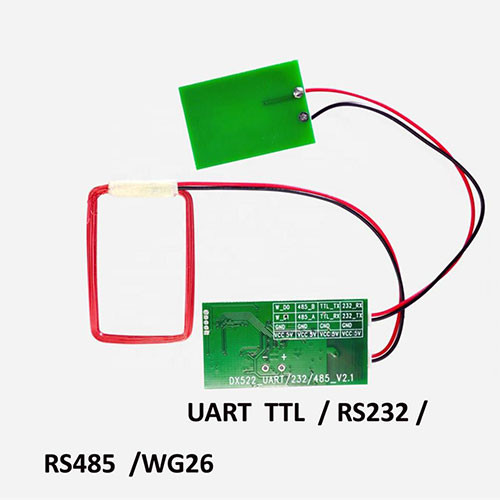

Xaloot foocal: UARTTTL, RS232, RS485, WG26
Kardi kiryaatih baxxo: 0-80mm
portokool caddo: ISO14443A
Tabaatabsi caddo: 9600 qunxa/s ( fayyale massos 230400 qunxa/s)

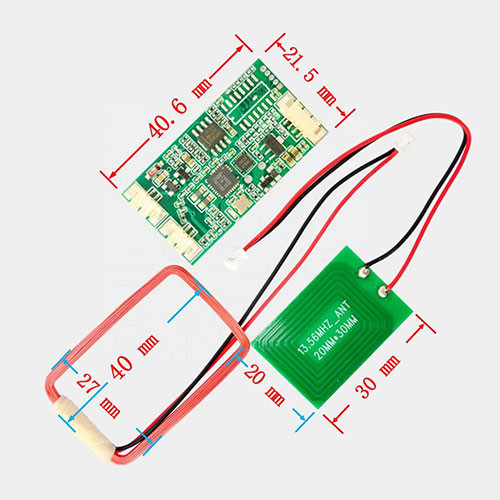

Mujallah giddakiino: 40.6mmX21.5mm

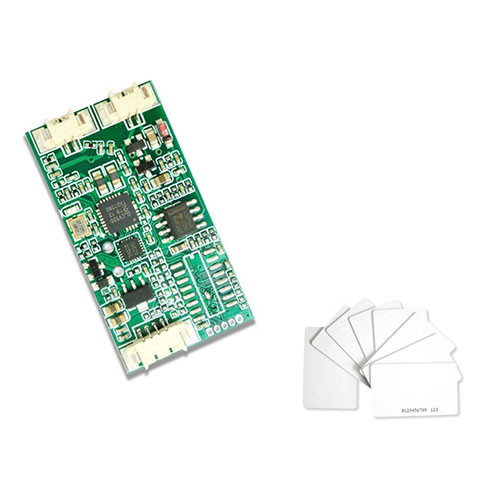

Qokkolsimte gatbarah qaynoota: IC gatbarah: S50/S70, M1, Mifaar, ifu, mifaar altira ifu, w.w. taniimi;
mamaxxaga kardi: EM4100

Calaqooqi
Ta moojuul mango luuc kee anteenah baxsi margaqa
Qokol namma qagaaqagih gatbarah kiryaati (IC gatbara + ID gatbara)
Qokol angaaraw sinni IC gatbara (13.56MHz) ximmo, luddi kiryaatii kee kutbe<br2Hz kee fidga ( IDK5d) EM4100 gatbarah ixximah kiryaati
qokol fidin gommodmali cayla, doorit 3.3V, 5V caylih xayyos
qokol mango foocal: UART, RS232, RS485, WG26
mojuul mafaxa kokkobise qimbisam, kee sissik geyam duudah

Ascossal xoqoysim
➊DC3.3V hinnay 5.0V caylih xayyos mojulut osgoorow
❷mojuul kompiiter sittal lakleh yan marsoosat garay USB lih ittallakleh marsoosah adabiter
❸fak ittallakleh marsoosah massos cateyna Te

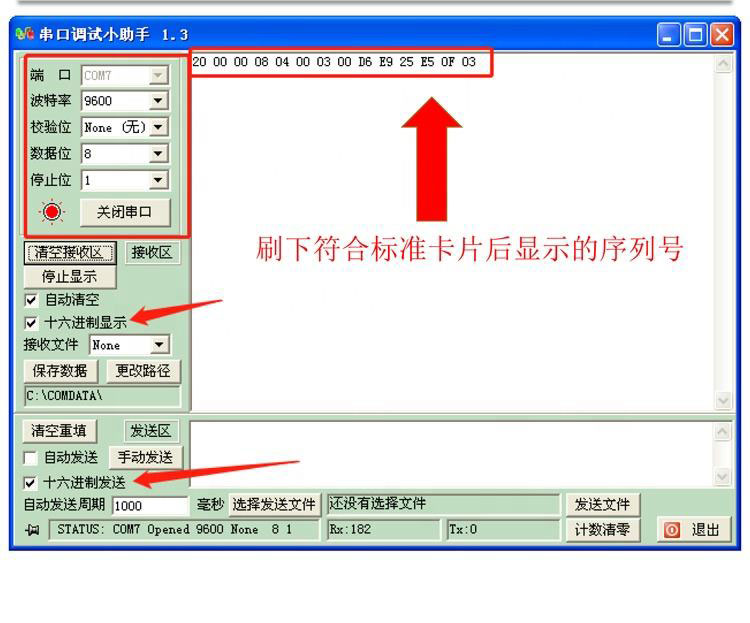

❸cop IC kardi hinnay ID kardi swipe abak, moduleh addat tan ifuy, buzzer "beep" kardi elle geytimeh yan innal, kee serial port assistant interface kompiiter addal geytimeh yan IC kardi hinnay ID kardi elle geytima numih ixxima. "ittallakleh marsoosah massoosih cateyna" faayil package, ittallakleh marsoosah farmo ciggiltam kaani:
➊Baud caddo: 9600
❷ cubbus ixxima: ulim
❸ oyti qunxa qunxa: 8
❹ soolis qunxa: 1
❺ addah digir hexadecimal mayballah, gatbara too madab kibta, kee ramad le sittal lakleh ixxima gatbara awqenta akkele sittal lakleh marsoh gitaak, muucil elle yanbulle innal

ISO14443A-IC-angaaraw sinni-kardi-kawsi-mammaxxaga-kardi-kawsi-mojuul-nammay-qagaaqagi-qagaaqagitak-ismarti-kardi-kawsi-luk-ittallakleh-farso

Taqabi inkih
Essero 1: Mojuul IC kardi mannal yakriyeeh, mannal yakriyeeh, IC kardi mannal yakriyeeh, mannal yakriyeeh?
1hayto maaqatta: Kardi elle yakriyeeh, elle yaktube innal. Mojuul tan ascossih ifu urraah, kardi serial number kaadu serial port fanah gexak geytima. ta uddur, dagah exxah kompiter ramad le miracsenta geele gatbarak ittallakleh ixxima. amri: 20 00 01 08 04 00 00 00 A6 40 FE E4 0E 03.
20: qimbisiyyi weelo
00: baakeejih ixxima
01: amri bayti, moojuul abinal yawqeh yan gatbarah ixxima 0; gersi amritte amri qangor kinnim tascasse
08: Ciggilta 8 baytitte sissin oytitte elle geytimta bititte kinnim tascasse
04 00: Kardi qaynat S50 kardi kinnim tascasse
00 00: Tama 2 baytitte sissin qaynatih maqnisso mali.
FEA6 :4d. baxaabaxsa le gatbaroori somboloolocta wak, 4 baytitte milaagimteh.
0E: cubbusso. toh elle bictam packet ixximak (SBQNR) ellecaboh bayti oyta (DATA), kee lakal wadirih gacte tet geyuh.
03: solsol gaba kalti.
