NFC kawsaay kutbeh moojuul NFC moojuul kawsa amoh moojuul qoklah 14443A/B gatbarah kiryaati moojuul

Qokkolsimte portokool: ISO1443A+IS014443B+IS015693 Qokkolsimte gatbaroori: Nanu Mifare tiya, ntag21x, I-CODE2, CPU gatbara ( banki gatbara, baasa, w.w tanim) moojuul- anteenah wadba yoo: mango anteenah massos cankah awqenta o: 4*1.25 akoota

NFC read and write module NFC module reader head module supports 14443A/B card reading module

NFC read and write module NFC module reader head module supports 14443A/B card reading module 2

[qokkol gatbaroori]: mifareyon (M1), S50, S70, NTAG2xx ittallakleh, Furi F08, 1-KOOX-X kee gersi qaynatih baxsitte; too waktit, toh kalah qokoltam duddah mamaxxaga nammeyhayto horah mamaxxaga gatbaroori, magaalâ gatbaroori, kee banki gatbaroori.

[gommodmali caylih caddo]:3.3V~5.0V

[Qokol portokool]: IS015693, IS014443-A, ISO14443-B, ISO18092

[taamitiyyi awakih uddur]: sisdikuk gatbarah goranto awakih uddur: 30mA

[Taamitiyyi niqna]:-20-85°C

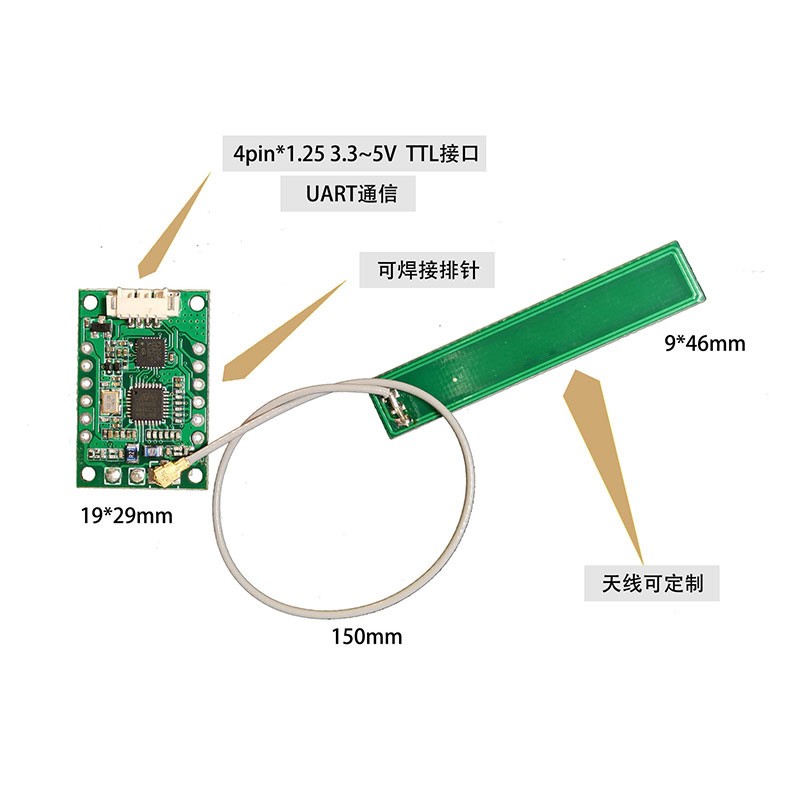

[angaaraw foocal]: UART ( RS-232 akkek RS-485 fan baarimtam duuddah), 1.25mm*4 foocal

【Bood caddo】:115200bps

[muujulih giddakiino]: Anteena kurruuma muujul: 28.6×19.1×4.7 mm

[Kiryaatih baxxo]: 20mm~60mm (bedittee kee anteenal rakitak)

[Catoh awqenta]: 1 catoh awqenta le (pin header lih angaaraw faxximta), tamah peripherals LEDs hinnay buzzers celta.

[kuti wagitto]: xissiime harxiweer wagitto kuti boodut kalaluh;
