nammeyhayto horah sumaqta NFC kiryaati- kutbeh gatbarah moojuul IC gatbarah kiryaati- kutbeh moojuul RFID kiryaati- kutbeh gatbarah moojuul

Ta mujallat xoqoysimak naharal nammeyhayto dadal faxxa. Dadlisa maritte platformih porograam (Windows, Android, MCU platform) kee UART wagsiisak ta module elle taamitan inna wagsiisak lowsis abaanam faxximta. ni koba dubuk xayyossam baadak serial marsoh massos cateyna ta moojuul gibbatuh, toh baadak moojuul hinna. Atu ahak dumal gersi massoynaanih mojulut xoqoysimteh tenek, oson saanih aracat gactam maduudda. atu kalah xayyossam faxxam rakiibô dadal kee dooking!

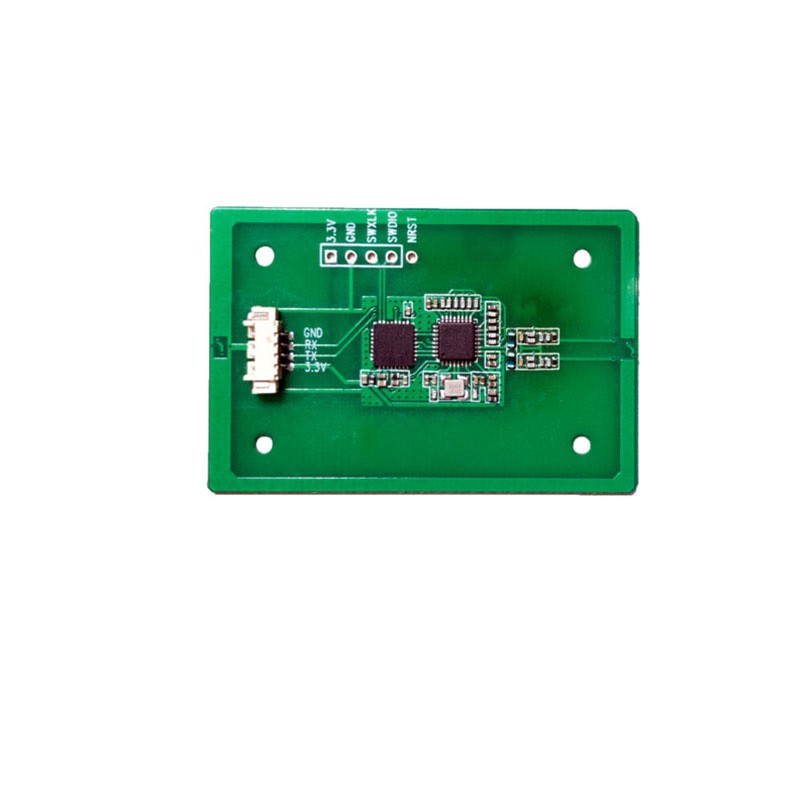

Second generation certificate NFC read-write card module IC card read-write module RFID read-write card module

[Support Cards]: Supports online identification of second-generation ID cards; supports identification of passports and Hong Kong and Macao passes; also supports mifare one (M1), S50, S70, UL: NTAG2xx series, Furi F08, I-CODE-X and other types Label, city card, bank card identification, etc.

[ID card analysis]: Supports online analysis. After registering for the ID card channel, you can read out the identity document photo information.

[Passport Reading]: This module has the function of reading passports and Hong Kong and Macao passes, and can read out the identity information and photo information in the documents.

[Voltage range]: 5V (±0.5V)

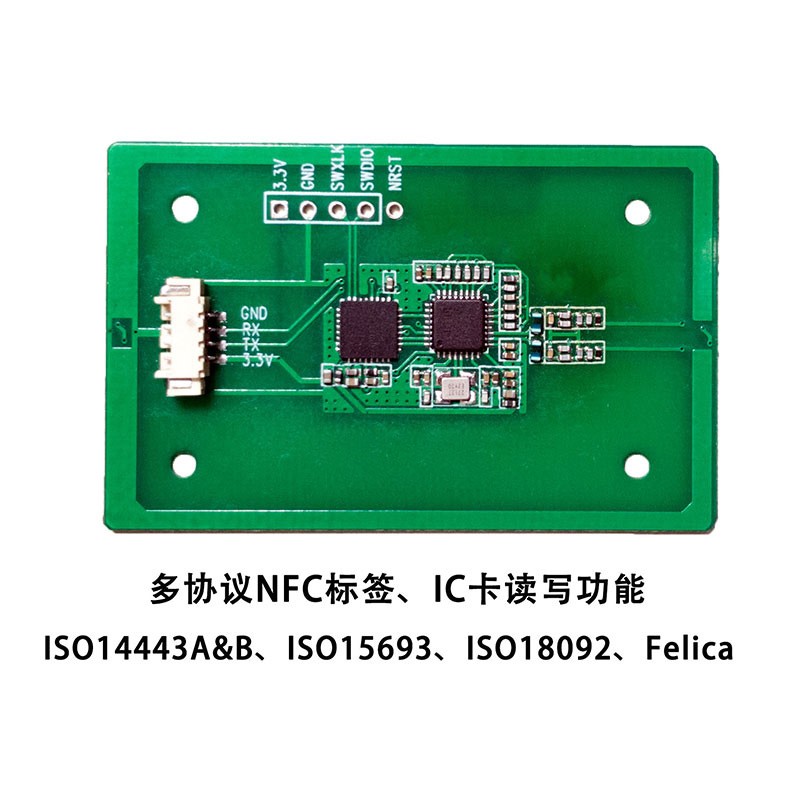

[Support protocols]: IS014443A, IS014443B, 10S15693, 1S018092, Felica

[Operating temperature]:-20~85℃

[Communication interface]: UART (reserved USB interface)

[Baud rate]: 115200bps (default)

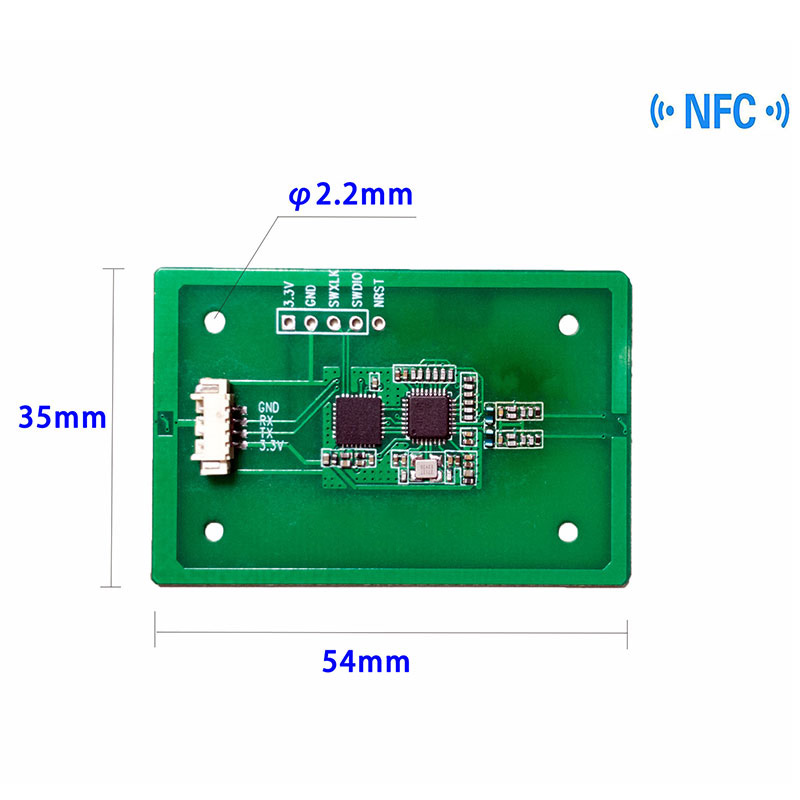

[Module size]: Main module: overall size (28.5*19*4.8mm), antenna module 28*45mm

[Reading distance]: 20mm~60mm (depending on the tag and antenna)

[Watchdog]: Built-in hardware watchdog to prevent crashes;
